Air724UG (YunDTU) 4G Full Netcom Cat.1 Module Core Development Board LTE Wireless Communication STM32 Routine MQTT Luat Secondar

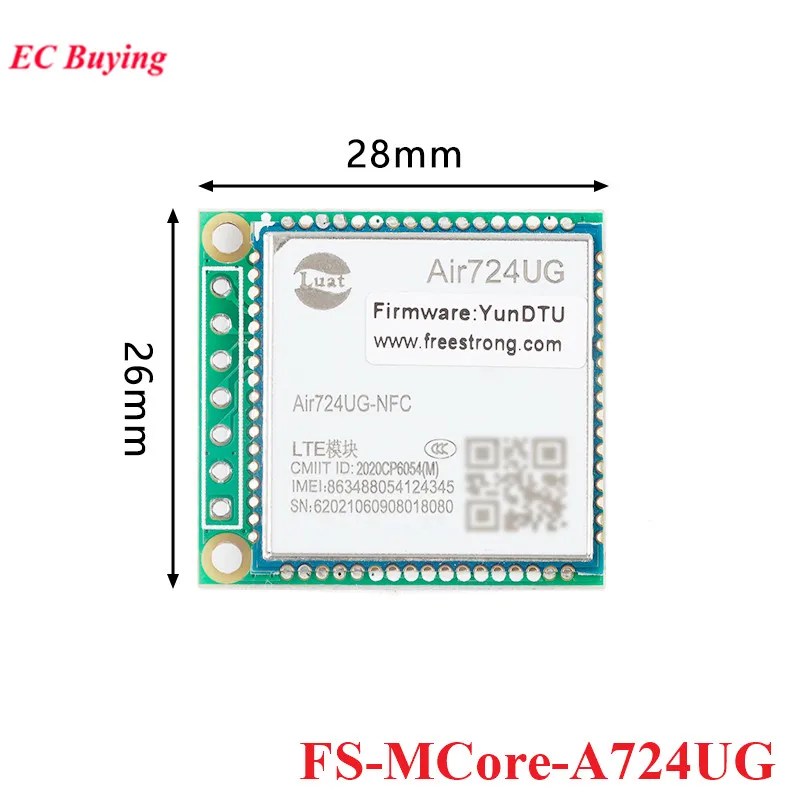

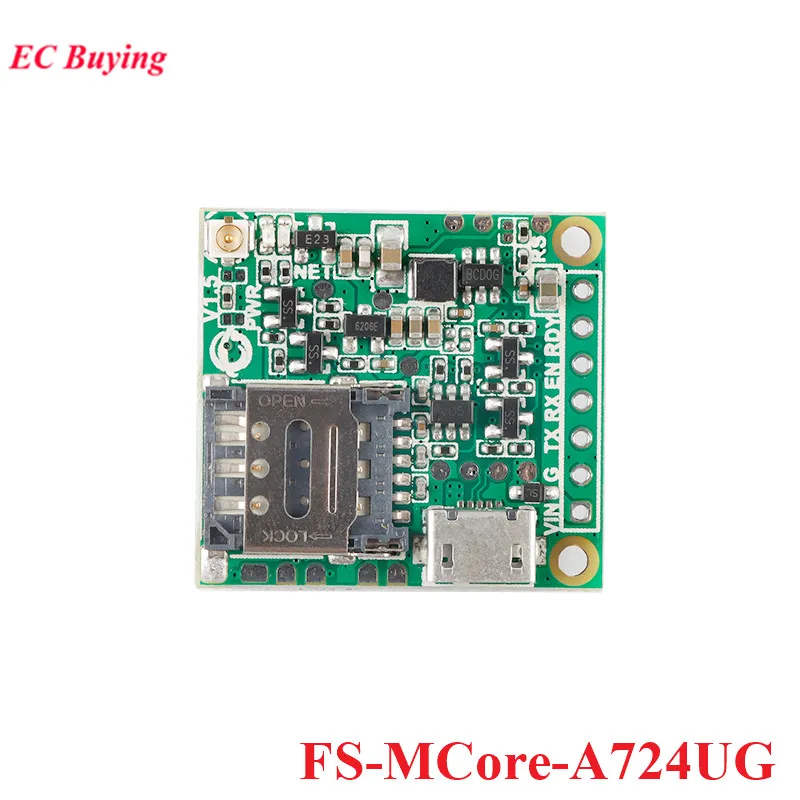

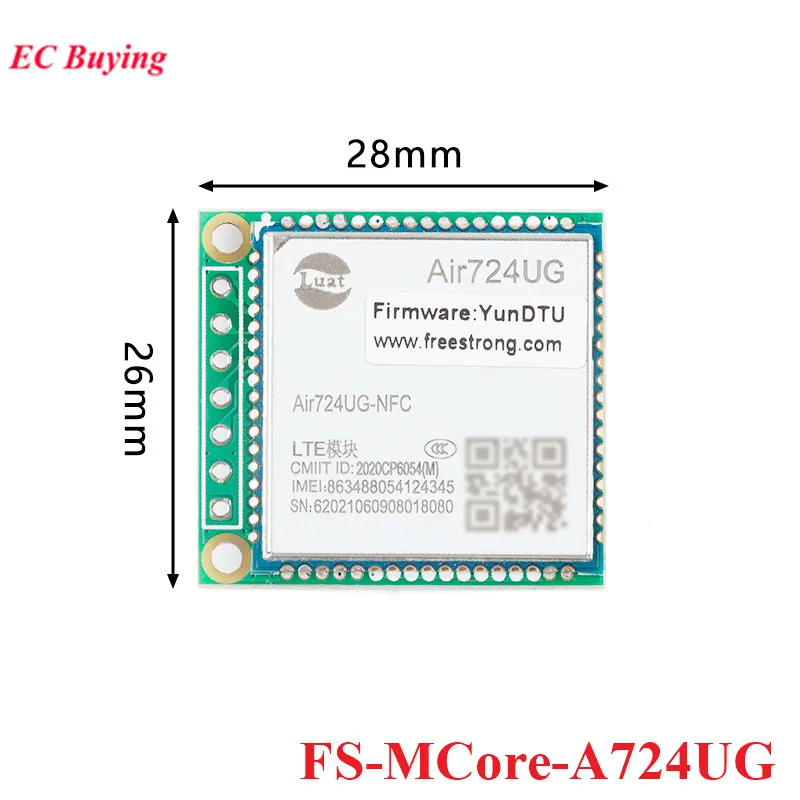

FS-MCore-A724UG

Product description:

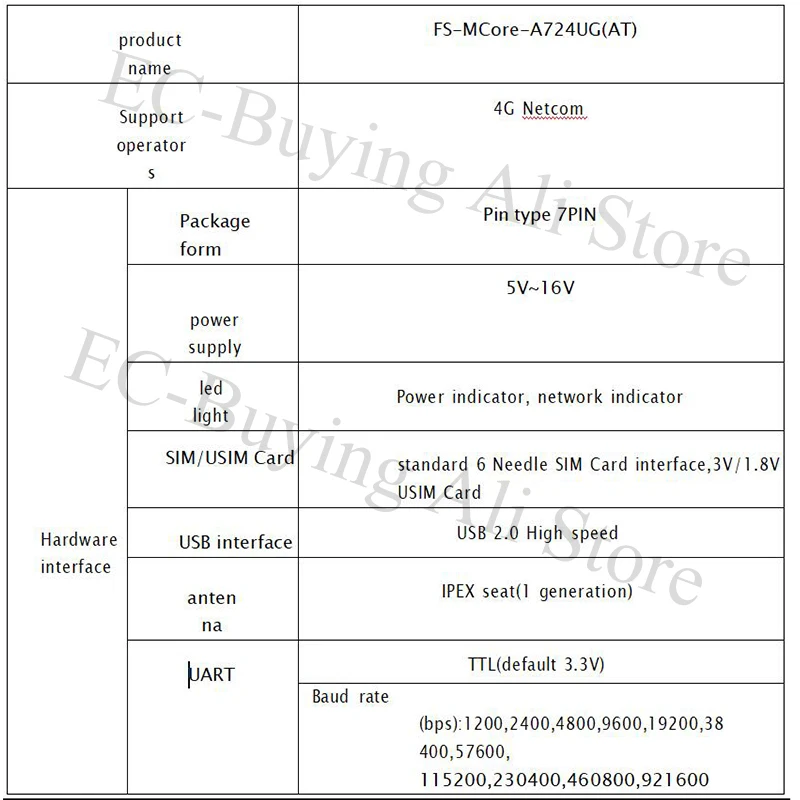

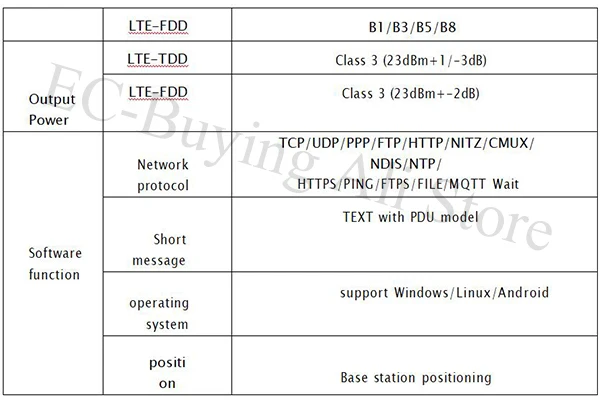

FS-MCore-A724UG(AT)Is based on the universe 4G Cat.1 Communication module Air724UG A communication module designed with good stability, high cost performance, ultra- small package and low power consumption. The module has been equipped with a good peripheral circuit, using7PIN Pluggable design, can be directly connected with MCU Communication shortens the development cycle, saves R&D costs, and facilitates customer evaluation and testing or direct batch application.Product specifications.

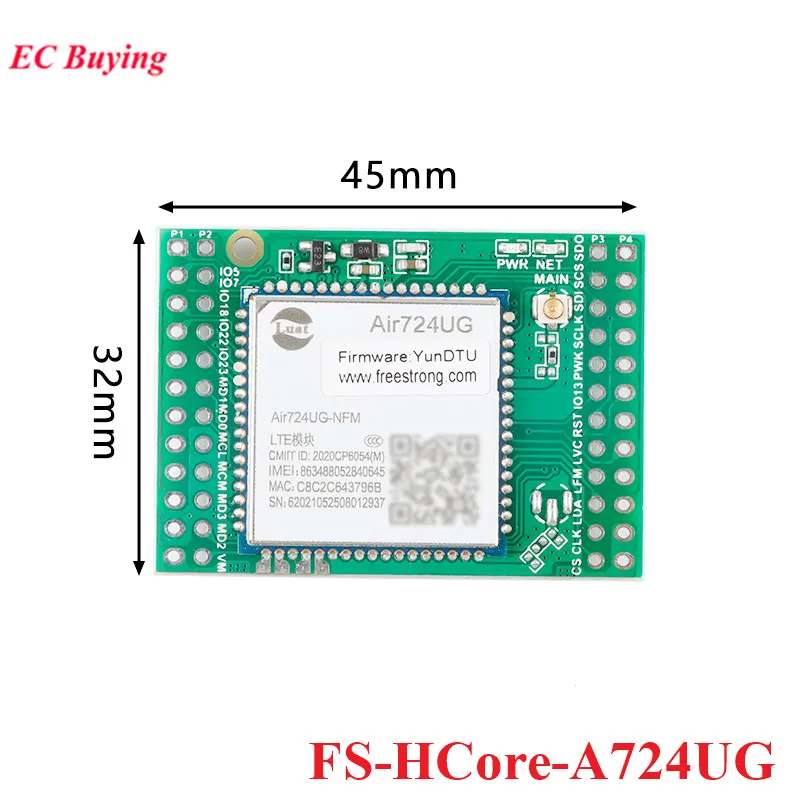

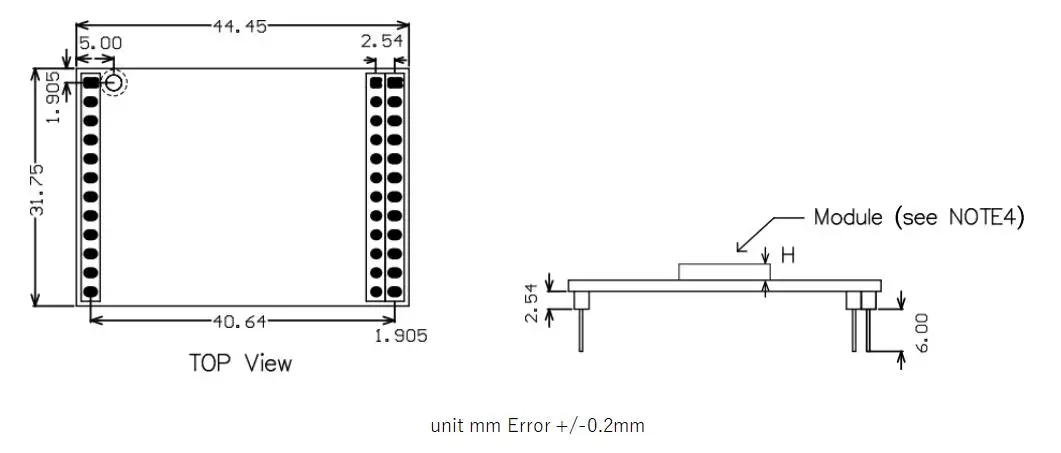

FS-HCore-A724UG

Product description:

FS‑HCore‑A724UG(AT)Is based on the universe 4G Cat.1 Communication module Air724UG A communication module designed with good stability, high cost performance and low power consumption. The module has been equipped with peripheral circuits, which can be directly connected with MCU Communication . The user only needs to pass a simpleAT Command configuration can realize product networking. This product supports TCP, UDP, FTP, HTTP, NTP, MQTT And other communication protocols.
