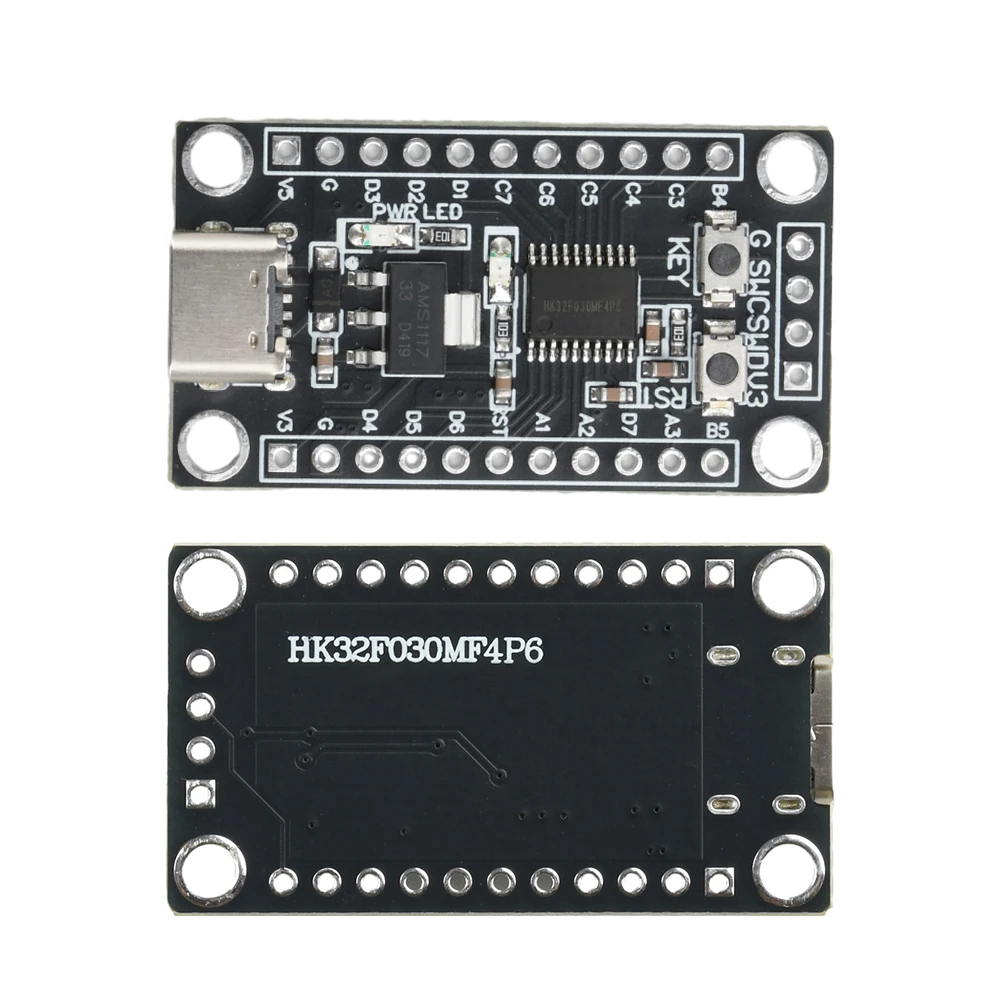

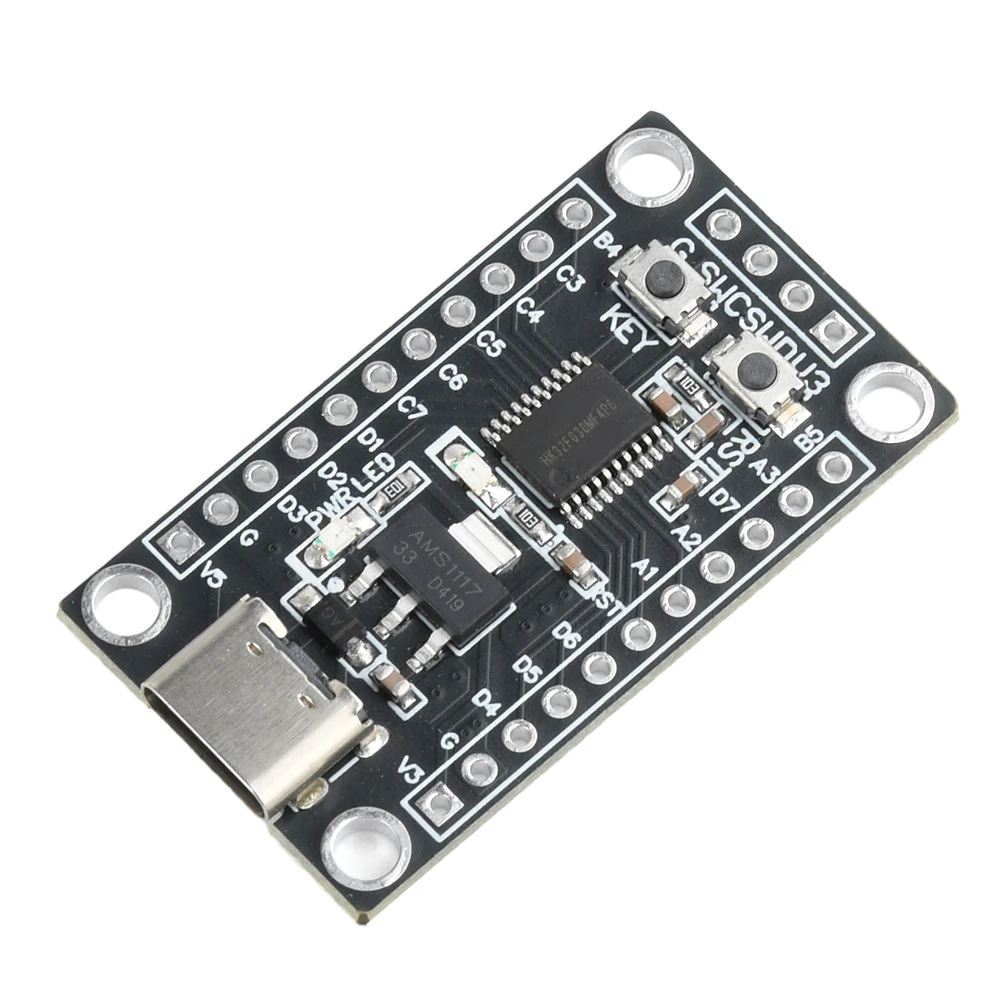

HK32F030MF4P6 Minimum System Core Board Evaluation Board Learning Development Board with TYPE-C Interface

Features:
1. Low power design: Operating voltage of 1.8V~3.6V, suitable for low-power application scenarios.
2. High performance core: equipped with Cortex-M0 core, with a maximum frequency of 32MHz, providing efficient processing capability.
3. Compact size: Only 38.9mm x 21.7mm in size, making it easy to integrate into small projects.
4. Rich peripheral interfaces: equipped with TYPE-C interface, reset+user button, power light+test LED, easy to debug.
5. Built in storage: 16KB Flash and 2KB RAM, as well as 448bytes EEPROM, to meet basic development needs.

Parameter:
Interface: TYPE-C
Working voltage: 1.8V~3.6V
Kernel: Cortex M0
Flash：16K Bytes
RAM：2KBytes
EEPROM： 448Bytes
Main frequency: up to 32MHz
KEY： Reset+user button
LED： Power light+user test LED
LDO: 3.3V maximum 1A output

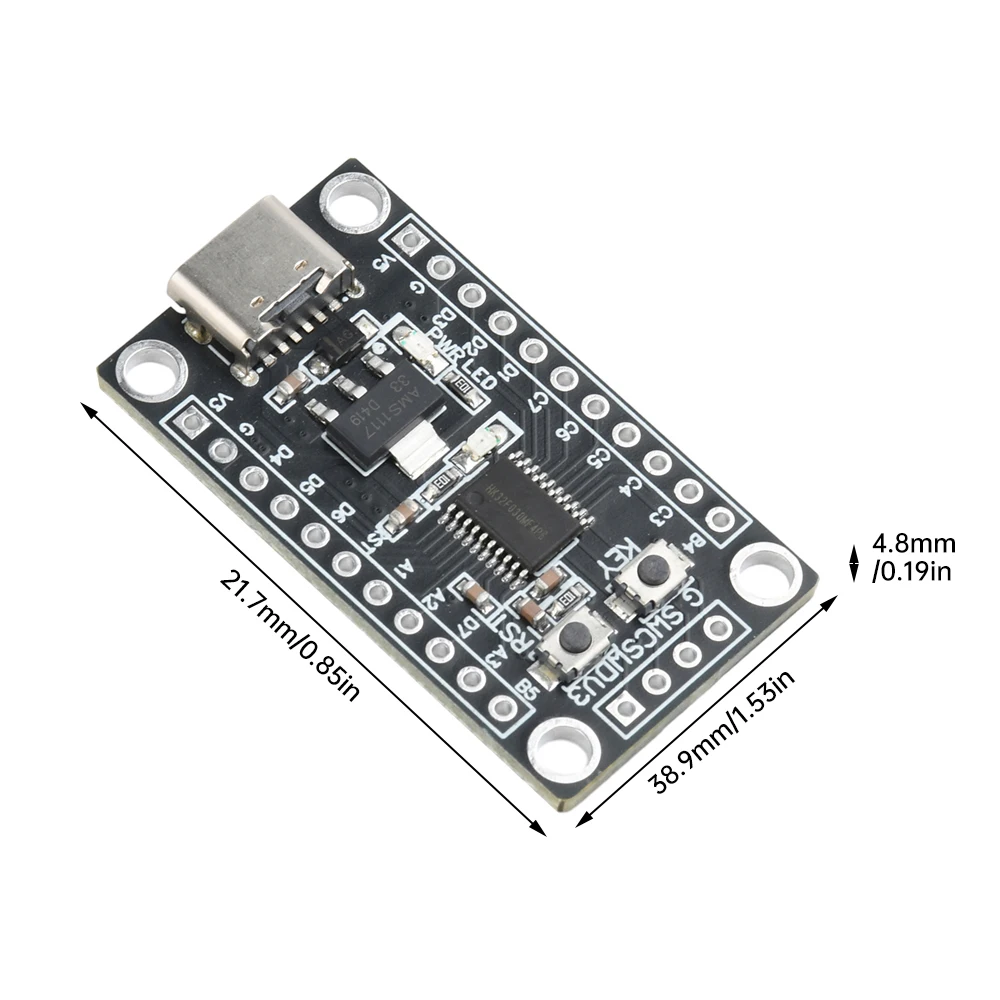

Size: 38.9mm * 21.7mm

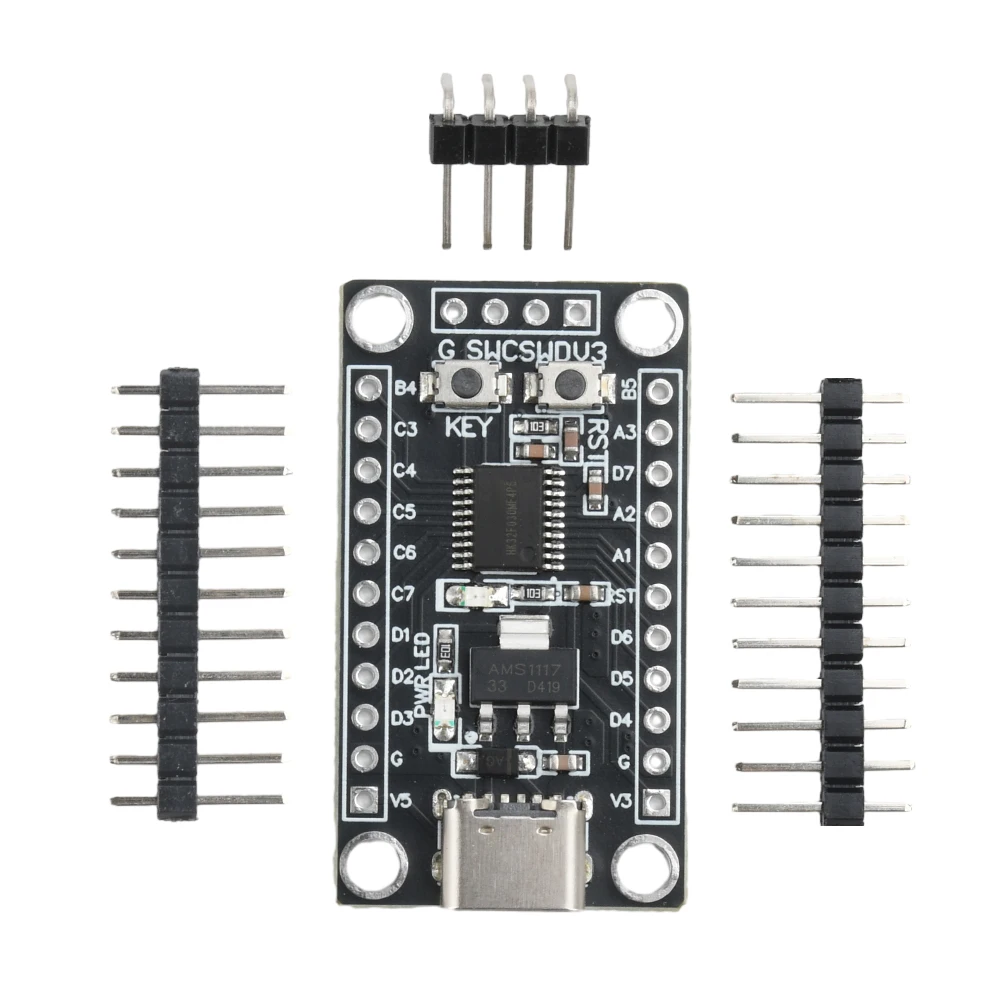

Package Include:
1X module
3X needle arrangement
