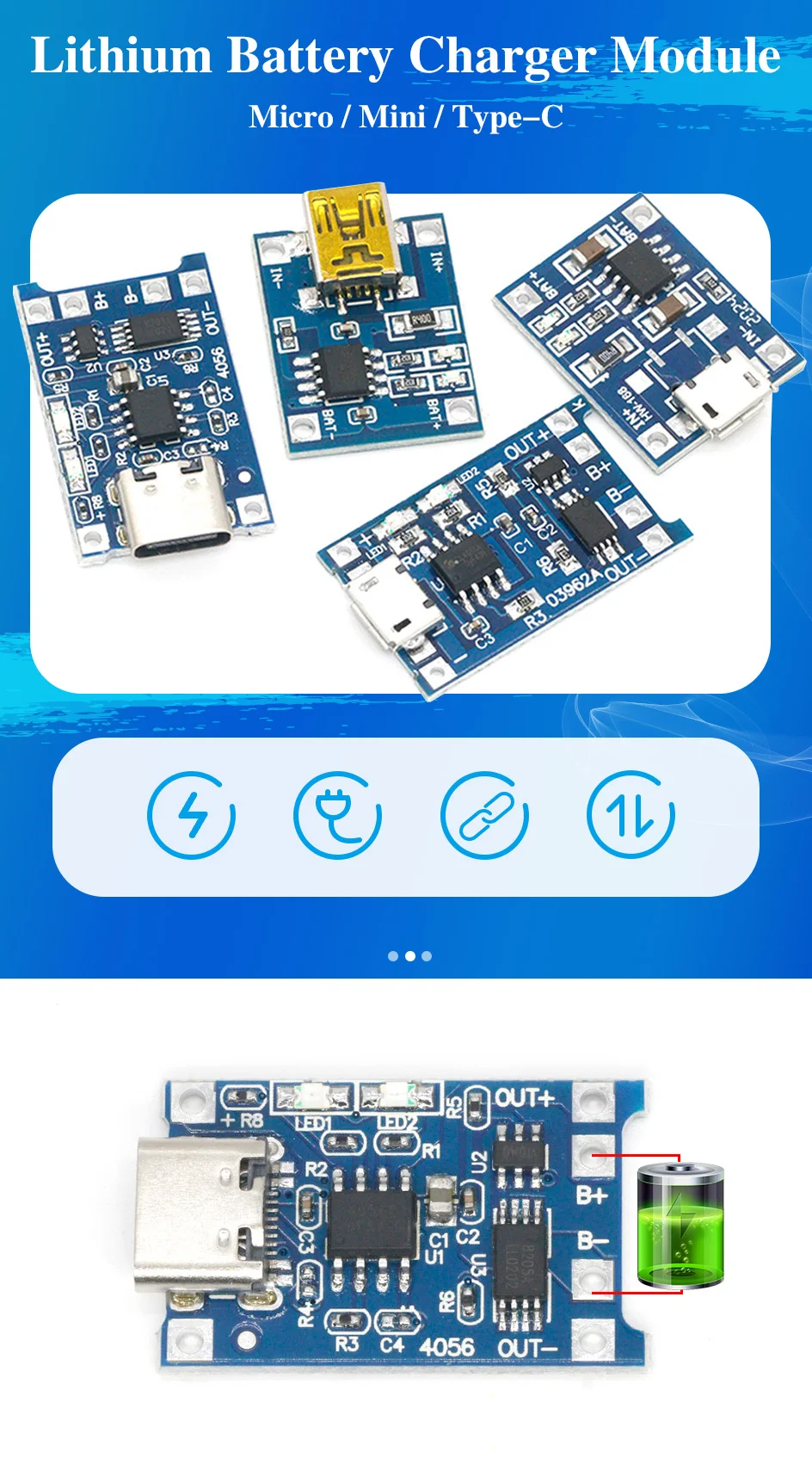

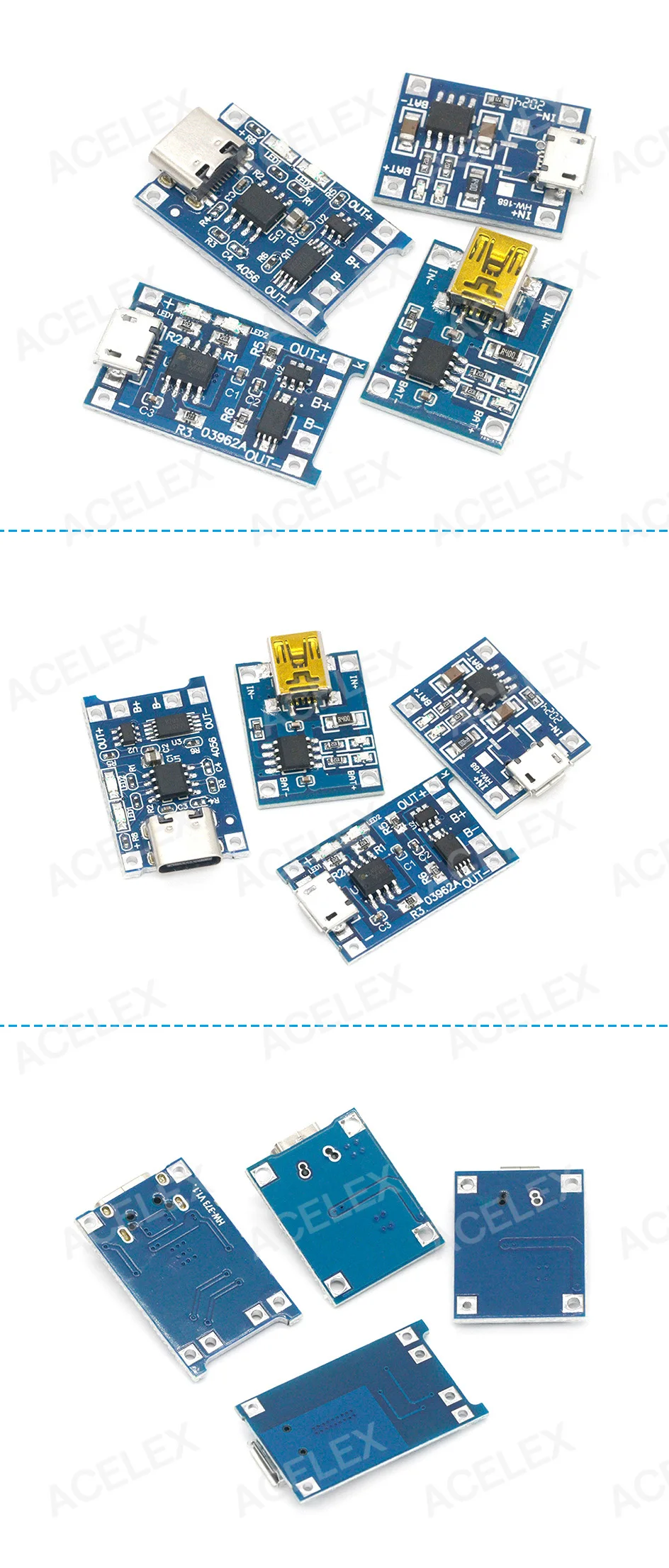

Description
TP4056 1A (Mini port)
Charging current: 1000mA
input voltage: 5V
Charging voltage: 4.2V
Over discharge protection: Voltage 2.5V
Over current protection: Current 3.2A
module size: 37*15MM
1.with tp4056 lithium battery charging management chip
2.on board Mini USB head, can be directly connected to the computer USB port
3.The charging board can also be powered by N + and N -) pins
4.Reserved TEM pin interface, which can be used for lithium battery temperature detection
5. The charging type D1 indicator light is on, and the charging completion D2 indicator light is on
18650 Micro USB
Input voltage: 5V
Charging cut-off voltage: 4.2V±1%
Max charging current: 1000mA
Battery over-discharge protection voltage: 2.5V
Battery over-current protect current: 3A
module size: 28*17.3mm
18650 Type-C USB
Input voltage: 5V
Charging cut-off voltage: 4.2V±1%
Max charging current: 1000mA
Battery over-discharge protection voltage: 2.5V
Battery over-current protect current: 3A
module size: 28*17.3mm
TP4056 Micro USB
Module name: TP4056 lithium charging board
Charging mode: linear charging
Charging current: 1A
Charging precision: 15%
Input voltage: 4.5V-5.5V
Full charge voltage: 4.2V
Charge indicator: Red light charging
Green light full charge
Input interface: Micro USB
Working temperature: -10℃~+85℃
Size: 22.5*17.3mm
TP4056 Mini USB
Module name: TP4056 lithium charging board
Charging mode: linear charging
Charging current: 1A
Charging precision: 15%
Input voltage: 4.5V-5.5V
Full charge voltage: 4.2V
Charge indicator: Red light charging
Green light full charge
Input interface: Mini USB
Working temperature: -10℃~+85℃
Size: 22.5*17.3mm
