Description
Features:
1. High performance core: 32-bit ARM Cortex-M0+, with a maximum operating frequency of 32MHz, providing efficient processing capabilities.
2. Large capacity storage: up to 64KB Flash and 8KB SRAM, meeting code and data storage requirements.
3. Multi time clock source support: Built in multiple RC oscillators and crystal oscillators to ensure a stable and reliable clock system.
4. Low power management: Supports Sleep and Stop modes, with power down reset and programmable voltage detection functions.
5. Rich peripheral interfaces: including 12 bit ADC, DMA controller, multiple timers, and various communication interfaces.
Parameter:
Kernel 32-bit ARM@Cortex-M0 +
Maximum operating frequency of 32MHz
storage
Maximum 64Kbytes flash memory
Maximum 8Kbytes SRAM
Clock system
Internal 4/8/16/22.12/24MHz RC oscillator (HSI)
Internal 32.768KHz RC oscillator (LSI)
4~32MHz crystal oscillator (HSE)
Power management and reset
Working voltage: 1.7V~5.5V
Low power mode: Sleep and Stop
Power on/power off reset (POR/PDR)
Power off detection reset (BOR)
Programmable Voltage Detection (PVD)
Universal Input/Output (I/O)
Up to 18 I/O can be used as external interrupts
Drive current 8mA
3-channel DMA controller
1x 12-bit ADC
Supports up to 10 external input channels
Input voltage conversion range: 0~VCC
timer
1 16 bit advanced control timer (TIM1)
4 universal 16 bit timers
(TIM3/TIM14/TIM16/TIM17)
1 low-power timer (LPTIM), supporting wake-up from stop mode
1 independent watchdog timer (IWDT)
1 window watchdog timer (WWDT)
1 SysTick timer
1 IRTIM
RTC
communication interface
1 Serial Peripheral Interface (SPI)
2 Universal Synchronous/Asynchronous Transceivers (USART), supporting automatic baud rate detection
1 I2C interface, supporting standard mode (100kHz), fast mode (400kHz), and 7-bit addressing mode
Hardware CRC-32 module
2 comparators
Unique UID
Serial Single Wire Debugging (SWD)
Working temperature:- 40~85℃

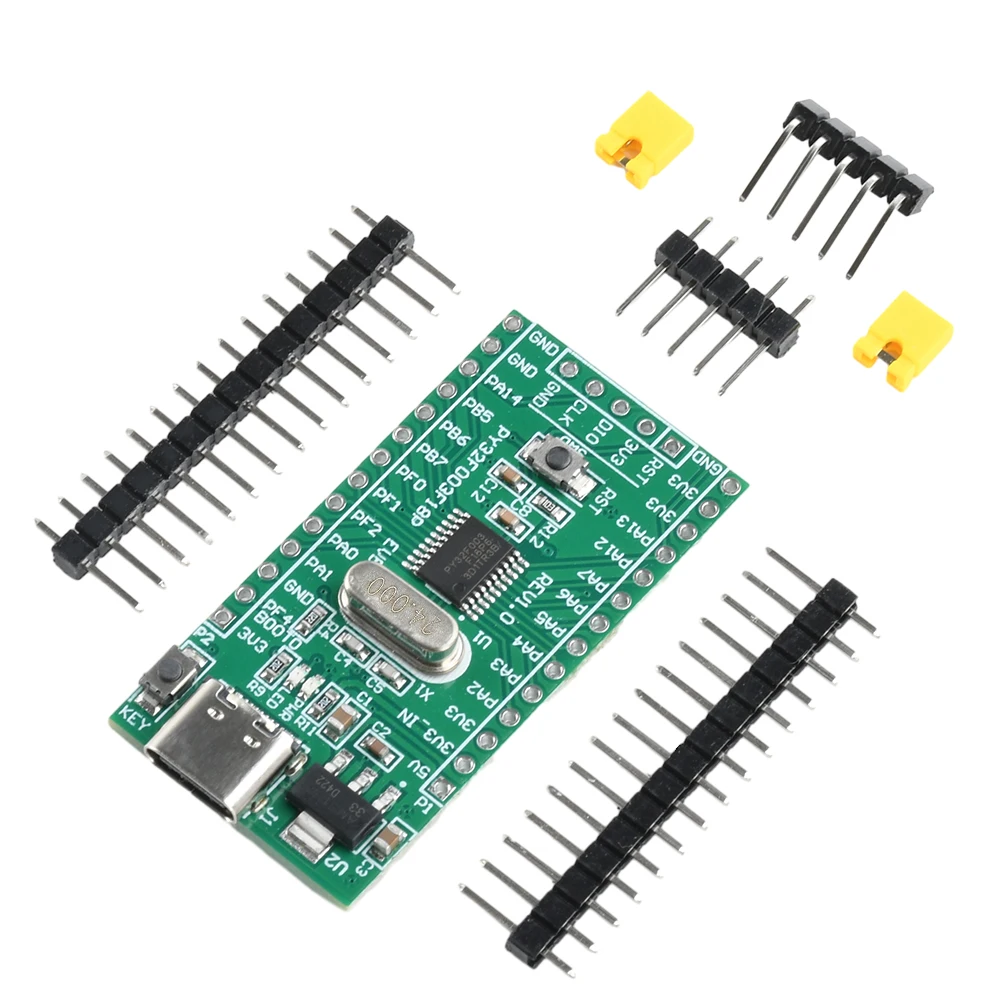

Package Include:
1X development board
4X needle arrangement
2X jumper cap
Attention: Due to batch issues, the color of the accessories is random and does not affect their use. Please be cautious when placing orders if you mind!
