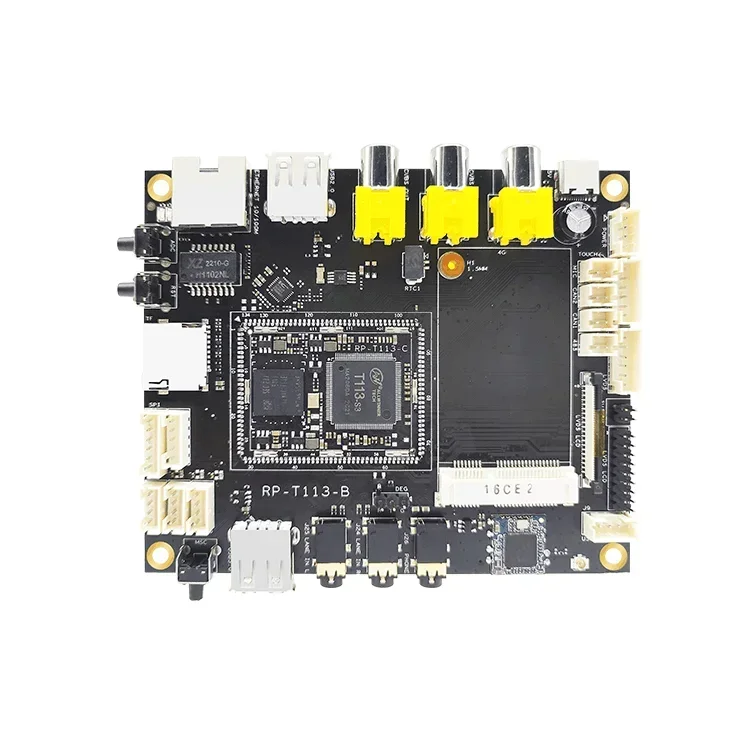

Description
Main hardware indicators |
|

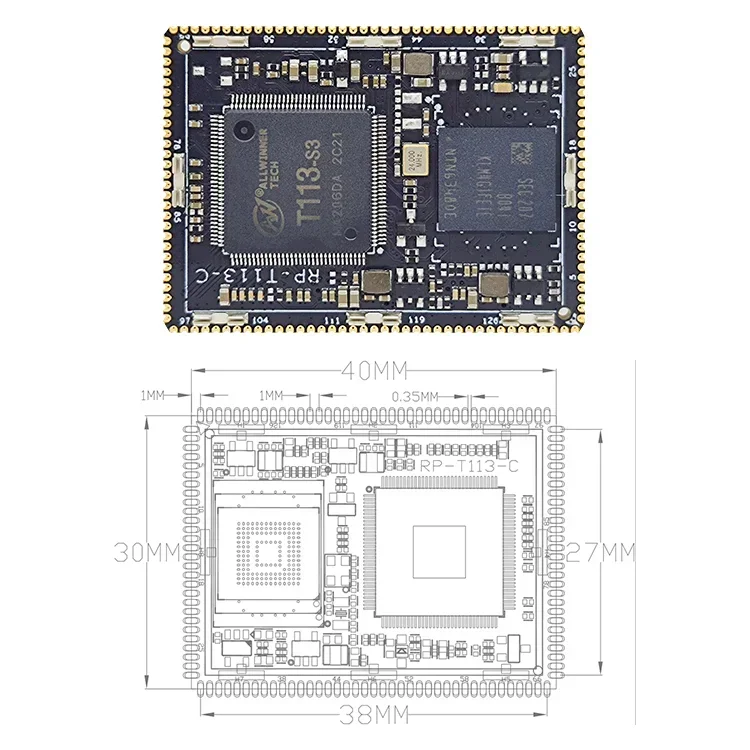

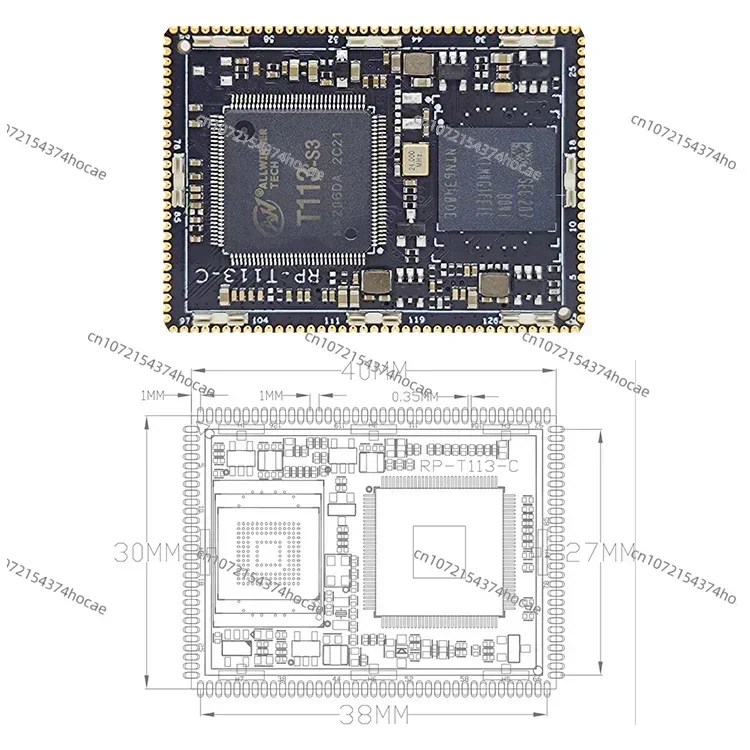

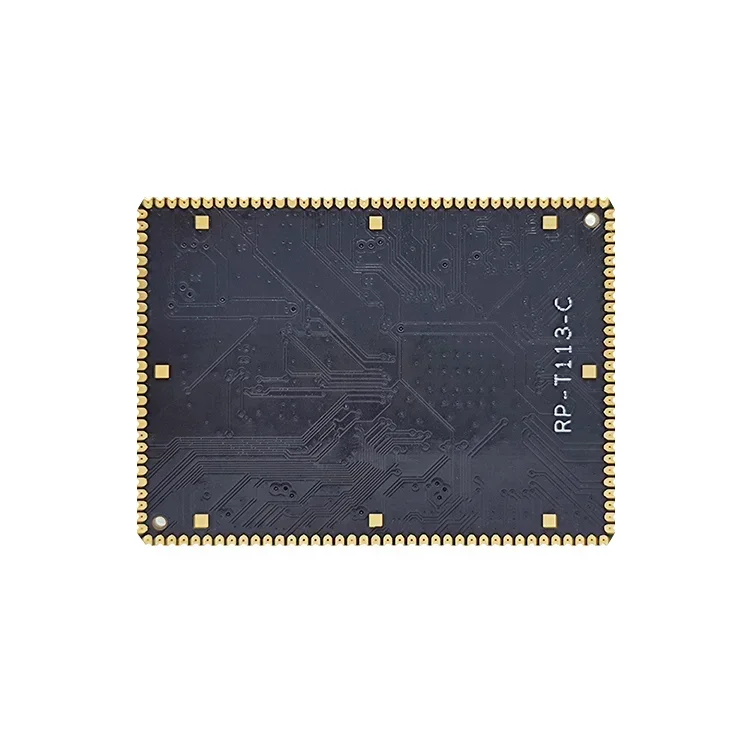

Size |
40mm*30mm*3mm |
Connection method |
stamp hole |

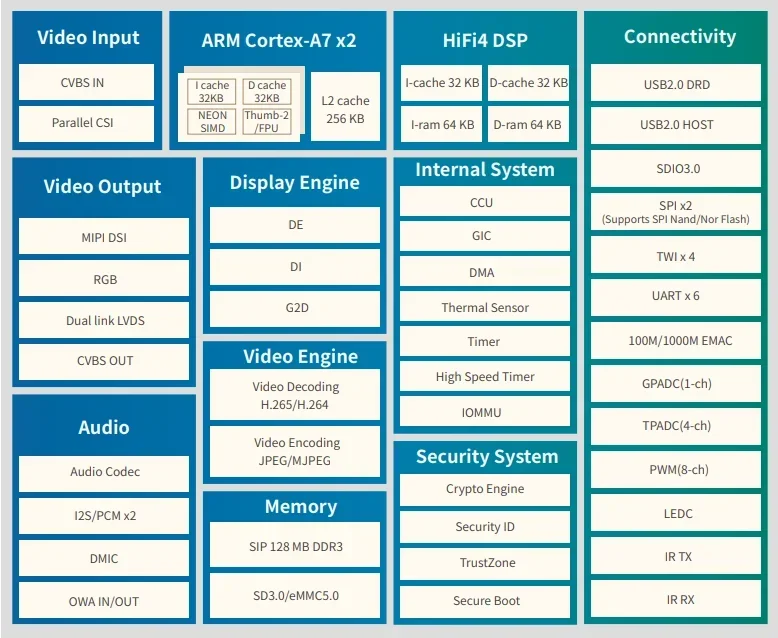

CPU |

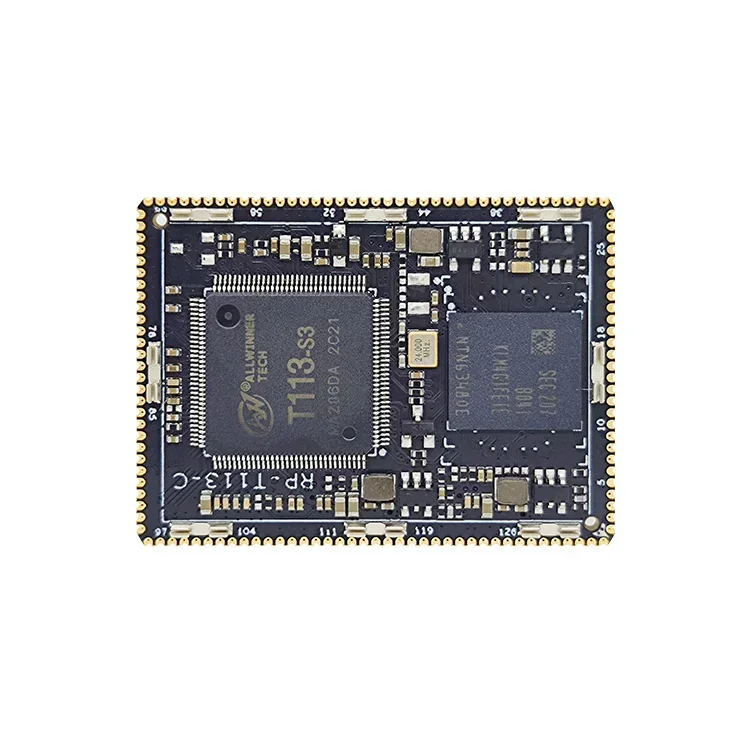

AllWINNER RPT113 Dual-core ARM CortexTM-A7 CPU |
Memory |
built-in 128MB DDR3 |
memory |
EMMC 5.1 Standard 4GB Optional 8G/16G/32G |
power management |
discrete design |
Operating Voltage |
3.4-5.5V |
support system |
Linux5.4 QT5.12.5 |
Operating temperature |
-25 to +85 degrees |
life |
Continuous operating life is more than 5 years |

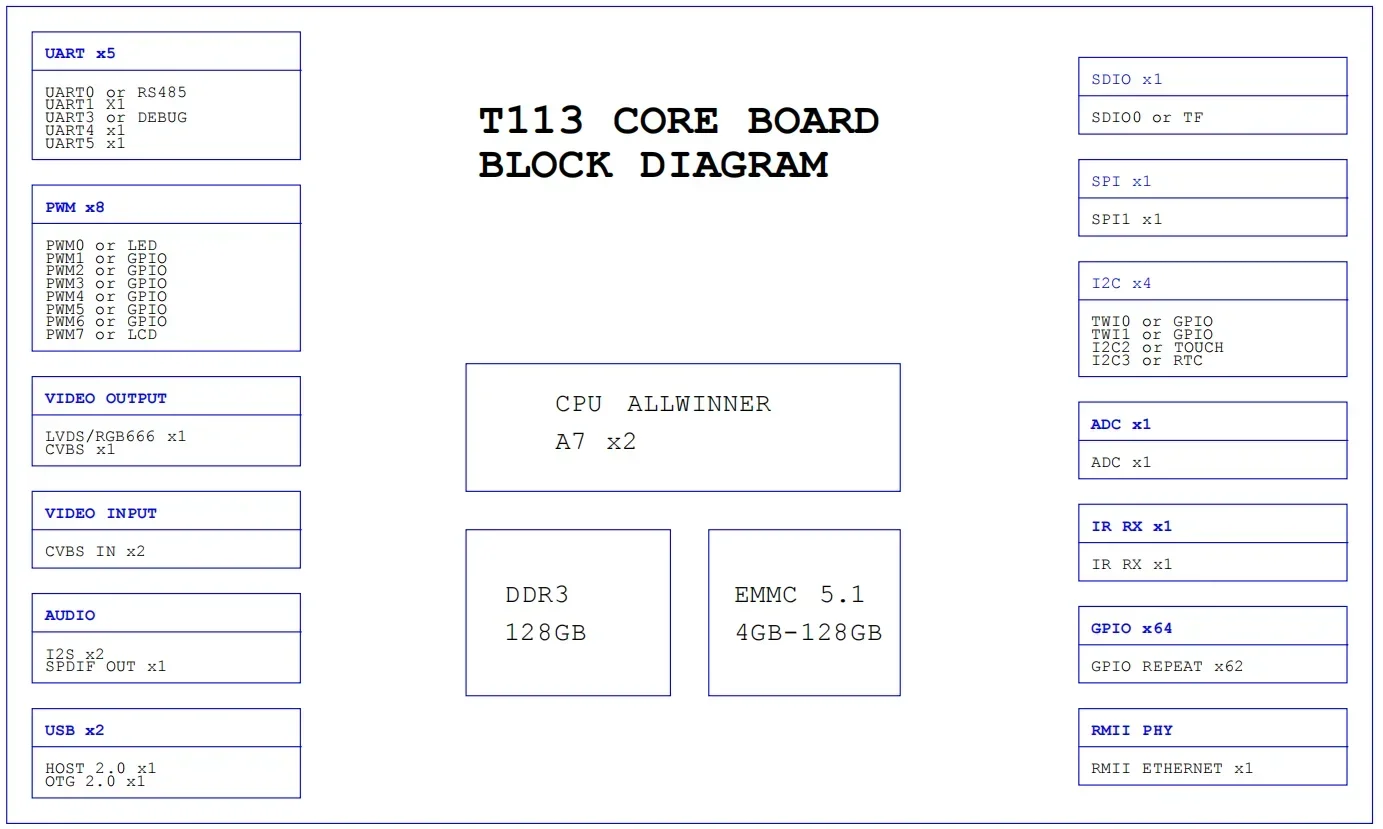

Common interface of core board |
|
RGB |
RGB666 output up to 720P |
LVDS |
Supports single 6/8 LVDS output up to 1280x800 |
Ethernet |
Support Ethernet Fast RMII interface |
CVBS input |
Support two-way CVBS analog camera input |
CVBS output |
Support two-way CVBS analog camera input |
I2S |
Two I2S channels, one channel 8 channels/one channel 2 channels |
voice |
Support 1 channel left and right channel output |
SDIO |
Support one SDIO 3.0 interface |
USB 2.0 |
1 independent USB 2.0 |
UART |
5 serial ports |
SPI |
1 way SPI |
I2C |
4 way I2C |
PWM |
8 way PWM |
ADC |
1 channel analog ADC input interface |
GPIO |
Multiplexable GPIO up to 62 |
|
Support USB/TF card local upgrade |
|
/ |
IO |
|
|
1 |
GND |
|
||
2 |
SDC0-DET |
VCC-PF 3V3 |
|
PF6/SPDIF_OUT/IR_RX/I2S2_MCLK/PWM5/PF_EINT6 |
3 |
SDC0-D1 |
VCC-PF 3V3 |
|
PF0/SDC0_D1/JTAG_MS/R_JTAG_MS/I2S2_DOUT1/I2S2_DIN0/PF_EINT0 |
4 |
SDC0-D0 |
VCC-PF 3V3 |
|
PF1/SDC0_D0/JTAG_DI/R_JTAG_DI/I2S2_DOUT0/I2S2_DIN1/PF_EINT1 |
5 |
SDC0-CLK |
VCC-PF 3V3 |
|
PF2/SDC0_CLK/UART0_TX/TWI0_SCK/LEDC_DO/SPDIF_IN/PF_EINT2 |
6 |
SDC0-CMD |
VCC-PF 3V3 |
|
PF3/SDC0_CMD/JTAG_DO/R_JTAG_DO/I2S2_BCLK/PF_EINT3 |
7 |
SDC0-D3 |
VCC-PF 3V3 |
|
PF4/SDC0_D3/UART0_RX/TWI0_SDA/PWM6/IR_TX/PF_EINT4 |
8 |
SDC0-D2 |
VCC-PF 3V3 |
|
PF5/SDC0_D2/JTAG_CK/R_JTAG_CK/I2S2_LRCK/PF_EINT5 |
9 |
GND |
|
||
10 |
|
|||
11 |
|
|||
12 |
|
|||
13 |
|
|||
14 |
|
|||
15 |
|
|||
16 |
|
|||
17 |
|
|||
18 |
|
|||
19 |
|
|||
20 |
|
|||
21 |
|
|||
22 |
|
|||
23 |
|
|||
24 |
|
|||
25 |
|
|||
26 |
|
|||
27 |
GND |
|
||
28 |
VSYS |
3V4-5V5 |
|
3.4V-5.5V |
29 |
GND |
|
||
30 |
VCC-3V3 |
3V3 |
|
3.3V 500mA |
31 |
GND |
|
||
32 |
VCC-1V8 |
1V8 |
|
1.8V 80mA |
33 |
GND |
|
||
34 |
AVCC |
1V8 |
|
1.8V 100mA |
35 |
EMMC_KEY |
1V8-3V3 |
|
|
36 |
POWER_EN |
3V4-5V5 |
|
|
37 |
KEY_RST |
3V3 |
|
|
38 |
AP-CK24M-OUT |
1V8 |
|
24M |
39 |
GND |
|
||
40 |
|
|||
41 |
|
|||
42 |
PE13 |
VCC-PE 3V3 |
|
PE13/TWI2_SDA/PWM5/I2S0_DOUT0/I2S0_DIN1/DMIC_DATA3/RGMII_RXD2/PE_EINT13 |
43 |
PE12 |
VCC-PE 3V3 |
|
PE12/TWI2_SCK/NCSI0_FIELD/I2S0_DOUT2/I2S0_DIN2/RGMII_TXD3/PE_EINT12 |
44 |
RXD1 |
VCC-PE 3V3 |
|
PE11/NCSI0_D7/UART1_RX/I2S0_DOUT3/I2S0_DIN3/JTAG_CK/RGMII_TXD2/PE_EINT11 |
45 |
TXD1 |
VCC-PE 3V3 |
|
PE10/NCSI0_D6/UART1_TX/PWM4/IR_RX/JTAG_DO/EPHY_25M/PE_EINT10 |
46 |
RXD3 |
VCC-PE 3V3 |
|
PE9/NCSI0_D5/UART1_CTS/PWM3/UART3_RX/JTAG_DI/MDIO/PE_EINT9 |
47 |
TXD3 |
VCC-PE 3V3 |
|
PE8/NCSI0_D4/UART1_RTS/PWM2/UART3_TX/JTAG_MS/MDC/PE_EINT8 |
48 |
RXD5 |
VCC-PE 3V3 |
|
PE7/NCSI0_D3/UART5_RX/TWI3_SDA/SPDIF_OUT/D_JTAG_CK/R_JTAG_CK /RGMII_CLKIN/RMII_RXER/PE_EINT7 |
49 |
TXD5 |
VCC-PE 3V3 |
|
PE6/NCSI0_D2/UART5_TX/TWI3_SCK/SPDIF_IN/D_JTAG_DO/R_JTAG_DO /RGMII_TXCTRL/RMII_TXEN/PE_EINT6 |
50 |
RXD4 |
VCC-PE 3V3 |
|
PE5/NCSI0_D1/UART4_RX/TWI2_SDA/LEDC_DO/D_JTAG_DI/R_JTAG_DI /RGMII_TXD1/RMII_TXD1/PE_EINT5 |
51 |
TXD4 |
VCC-PE 3V3 |
|
PE4/NCSI0_D0/UART4_TX/TWI2_SCK/CLK_FANOUT2/D_JTAG_MS/R_JTAG_MS /RGMII_TXD0/RMII_TXD0/PE_EINT4 |
52 |
RXD0 |
VCC-PE 3V3 |
|
PE3/NCSI0_MCLK/UART2_RX/TWI0_SDA/CLK_FANOUT1/UART0_RX /RGMII_TXCK/RMII_TXCK/PE_EINT3 |
53 |
TXD0 |
VCC-PE 3V3 |
|
PE2/NCSI0_PCLK/UART2_TX/TWI0_SCK/CLK_FANOUT0/UART0_TX /RGMII_RXD1/RMII_RXD1/PE_EINT2 |
54 |
PE1 |
VCC-PE 3V3 |
|
PE1/NCSI0_VSYNC/UART2_CTS/TWI1_SDA/LCD0_VSYNC /RGMII_RXD0/RMII_RXD0/PE_EINT1 |
55 |
PE0 |
VCC-PE 3V3 |
|
PE0/NCSI0_HSYNC/UART2_RTS/TWI1_SCK/LCD0_HSYNC /RGMII_RXCTRL/RMII_CRS_DV/PE_EINT0 |
56 |
GND |
|
|
|
57 |
LVDS0-V0P |
VCC-PD 3V3 |
|
PD0/LCD0_D2/LVDS0_V0P/DSI_D0P/TWI0_SCK/PD_EINT0 |
58 |
LVDS0-V0N |
VCC-PD 3V3 |
|
PD1/LCD0_D3/LVDS0_V0N/DSI_D0N/UART2_TX/PD_EINT1 |
59 |
LVDS0-V1P |
VCC-PD 3V3 |
|
PD2/LCD0_D4/LVDS0_V1P/DSI_D1P/UART2_RX/PD_EINT2 |
60 |
LVDS0-V1N |
VCC-PD 3V3 |
|
PD3/LCD0_D5/LVDS0_V1N/DSI_D1N/UART2_RTS/PD_EINT3 |
61 |
LVDS0-V2P |
VCC-PD 3V3 |
|
PD4/LCD0_D6/LVDS0_V2P/DSI_CKP/UART2_CTS/PD_EINT4 |
62 |
LVDS0-V2N |
VCC-PD 3V3 |
|
PD5/LCD0_D7/LVDS0_V2N/DSI_CKN/UART5_TX/PD_EINT5 |
63 |
LVDS0-CKP |
VCC-PD 3V3 |
|
PD6/LCD0_D10/LVDS0_CKP/DSI_D2P/UART5_RX/PD_EINT6 |
64 |
LVDS0-CKN |
VCC-PD 3V3 |
|
PD7/LCD0_D11/LVDS0_CKN/DSI_D2N/UART4_TX/PD_EINT7 |
65 |
LVDS0-V3P |
VCC-PD 3V3 |
|
PD8/LCD0_D12/LVDS0_V3P/DSI_D3P/UART4_RX/PD_EINT8 |
66 |
LVDS0-V3N |
VCC-PD 3V3 |
|
PD9/LCD0_D13/LVDS0_V3N/DSI_D3N/PWM6/PD_EINT9 |
67 |
SPI1_CS |
VCC-PD 3V3 |
|
PD10/LCD0_D14/LVDS1_V0P/SPI1_CS/DBI_CSX/UART3_TX/PD_EINT10 |
68 |
SPI1_CLK |
VCC-PD 3V3 |
|
PD11/LCD0_D15/LVDS1_V0N/SPI1_CLK/DBI_SCLK/UART3_RX/PD_EINT11 |
69 |
SPI1_MOSI |
VCC-PD 3V3 |
|
PD12/LCD0_D18/LVDS1_V1P/SPI1_MOSI/DBI_SDO/TWI0_SDA/PD_EINT12 |
70 |
SPI1_MISO |
VCC-PD 3V3 |
|
PD13/LCD0_D19/LVDS1_V1N/SPI1_MISO/DBI_SDI/DBI_TE /DBI_DCX/UART3_RTS/PD_EINT13 |
71 |
USB_DET |
VCC-PD 3V3 |
|
PD14/LCD0_D20/LVDS1_V2P/SPI1_HOLD/DBI_DCX/DBI_WRX /UART3_CTS/PD_EINT14 |
72 |
PD15 |
VCC-PD 3V3 |
|
PD15/LCD0_D21/LVDS1_V2N/SPI1_WP/DBI_TE/IR_RX/PD_EINT15 |
73 |
PWM0 |
VCC-PD 3V3 |
|
PD16/LCD0_D22/LVDS1_CKP/DMIC_DATA3/PWM0/PD_EINT16 |
74 |
PD17 |
VCC-PD 3V3 |
|
PD17/LCD0_D23/LVDS1_CKN/DMIC_DATA2/PWM1/PD_EINT17 |
75 |
PD18 |
VCC-PD 3V3 |
|
PD18/LCD0_CLK/LVDS1_V3P/DMIC_DATA1/PWM2/PD_EINT18 |
76 |
PD19 |
VCC-PD 3V3 |
|
PD19/LCD0_DE/LVDS1_V3N/DMIC_DATA0/PWM3/PD_EINT19 |
77 |
TWI2_SCL |
VCC-PD 3V3 |
|
PD20/LCD0_HSYNC/TWI2_SCK/DMIC_CLK/PWM4/PD_EINT20 |
78 |
TWI2_SDA |
VCC-PD 3V3 |
|
PD21/LCD0_VSYNC/TWI2_SDA/UART1_TX/PWM5/PD_EINT21 |
79 |
PWM7 |
VCC-PD 3V3 |
|
PD22/SPDIF_OUT/IR_RX/UART1_RX/PWM7/PD_EINT22 |
80 |
GND |
|
||
81 |
TWI3_SDA |
VCC-PB 3V3 |
|
PB7/LCD0_D17/I2S2_MCLK/TWI3_SDA/IR_RX/LCD0_D23/UART3_RX /CPUBIST1/PB_EINT7 |
82 |
TWI3_SCL |
VCC-PB 3V3 |
|
PB6/LCD0_D16/I2S2_LRCK/TWI3_SCK/PWM1/LCD0_D22/UART3_TX /CPUBIST0/PB_EINT6 |
83 |
CAN1-RX |
VCC-PB 3V3 |
|
PB5/LCD0_D9/I2S2_BCLK/TWI1_SDA/PWM0/LCD0_D21/UART5_RX /CAN1-RX0/PB_EINT5 |
84 |
CAN1-TX |
VCC-PB 3V3 |
|
PB4/LCD0_D8/I2S2_DOUT0/TWI1_SCK/I2S2_DIN1/LCD0_D20 /UART5_TX/CAN1-TX0/PB_EINT4 |
85 |
CAN0-RX |
VCC-PB 3V3 |
|
PB3/LCD0_D1/I2S2_DOUT1/TWI0_SCK/I2S2_DIN0/LCD0_D19 /UART4_RX/CAN0-RX0/PB_EINT3 |
86 |
CAN0-TX |
VCC-PB 3V3 |
|
PB2/LCD0_D0/I2S2_DOUT2/TWI0_SDA/I2S2_DIN2/LCD0_D18 /UART4_TX/CAN0-TX0/PB_EINT2 |
87 |
GND |
|
||
88 |
MICIN3N |
|
|
|
89 |
MICIN3P |
|
|
|
90 |
GND |
|
||
91 |
FMINL |
|
L |
|
92 |
FMINR |
|
R |
|
93 |
GND |
|
||
94 |
LINEINL |
|
L |
|
95 |
LINEINR |
|
R |
|
96 |
HPOUTFB |
|
|
|
97 |
HPOUTL |
|
||
98 |
HPOUTR |
|
||
99 |
GND |
|
||
100 |
GPADC0 |
1V8 |
|
ADC |
101 |
TP-X1 |
|
X1 |
|
102 |
TP-X2 |
|
X2 |
|
103 |
TP-Y1 |
|
Y1 |
|
104 |
TP-Y2 |
|
Y2 |
|
105 |
GND |
|
||
106 |
TV-IN1 |
|
CVBS1 |
|
107 |
GND |
|
||
108 |
TV-IN0 |
|
CVBS0 |
|
109 |
GND |
|
||
110 |
TV-OUT |
|
CVBS |
|
111 |
GND |
|
||
112 |
USB1-DP |
USB1-DP |
||
113 |
USB1-DM |
USB1-DM |
||
114 |
GND |
GND |
||
115 |
USB0-DM |
OTG-DM |
||
116 |
USB0-DP |
OTG-DP |
||
117 |
GND |
|
||
118 |
RMII-MDIO |
VCC-PG 3V3 |
|
PG15/I2S1_DOUT0/TWI2_SDA/MDIO/I2S1_DIN1/SPI0_HOLD/UART1_CTS/PG_EINT15 |
119 |
RMII-MDC |
VCC-PG 3V3 |
|
PG14/I2S1_DIN0/TWI2_SCK/MDC/I2S1_DOUT1/SPI0_WP/UART1_RTS/PG_EINT14 |
120 |
RMII-RXER |
VCC-PG 3V3 |
|
PG13/I2S1_BCLK/TWI0_SDA/RGMII_CLKIN/RMII_RXER/PWM2 /LEDC_DO/UART1_RX/PG_EINT13 |
121 |
RMII-CRS-RXDV |
VCC-PG 3V3 |
|
PG0/SDC1_CLK/UART3_TX/RGMII_RXCTRL/RMII_CRS_DV/PWM7/PG_EINT0 |
122 |
RMII-RXD0 |
VCC-PG 3V3 |
|
PG1/SDC1_CMD/UART3_RX/RGMII_RXD0/RMII_RXD0/PWM6/PG_EINT1 |
123 |
RMII-RXD1 |
VCC-PG 3V3 |
|
PG2/SDC1_D0/UART3_RTS/RGMII_RXD1/RMII_RXD1/UART4_TX/PG_EINT2 |
124 |
RMII-RXCK |
VCC-PG 3V3 |
|
PG10/PWM3/TWI3_SCK/RGMII_RXCK/CLK_FANOUT0/IR_RX/PG_EINT10 |
125 |
RMII-TXCK |
VCC-PG 3V3 |
|
PG3/SDC1_D1/UART3_CTS/RGMII_TXCK/RMII_TXCK/UART4_RX/PG_EINT3 |
126 |
RMII-TXD0 |
VCC-PG 3V3 |
|
PG4/SDC1_D2/UART5_TX/RGMII_TXD0/RMII_TXD0/PWM5/PG_EINT4 |
127 |
RMII-TXD1 |
VCC-PG 3V3 |
|
PG5/SDC1_D3/UART5_RX/RGMII_TXD1/RMII_TXD1/PWM4/PG_EINT5 |
128 |
RMII-TXEN |
VCC-PG 3V3 |
|
PG12/I2S1_LRCK/TWI0_SCK/RGMII_TXCTRL/RMII_TXEN/CLK_FANOUT2 /PWM0/UART1_TX/PG_EINT12 |
129 |
EPHY_25M |
VCC-PG 3V3 |
|
PG11/I2S1_MCLK/TWI3_SDA/EPHY_25M/CLK_FANOUT1/TCON_TRIG/PG_EINT11 |
130 |
RMII-RESET |
VCC-PG 3V3 |
|
PG9/UART1_CTS/TWI1_SDA/RGMII_RXD3/UART3_RX/PG_EINT9 |
131 |
PG8 |
VCC-PG 3V3 |
|
PG8/UART1_RTS/TWI1_SCK/RGMII_RXD2/UART3_TX/PG_EINT8 |
132 |
PG7 |
VCC-PG 3V3 |
|
PG7/UART1_RX/TWI2_SDA/RGMII_TXD3/SPDIF_IN/PG_EINT7 |
133 |
PG6 |
VCC-PG 3V3 |
|
PG6/UART1_TX/TWI2_SCK/RGMII_TXD2/PWM1/PG_EINT6 |
134 |
GND |
|
|
|
|

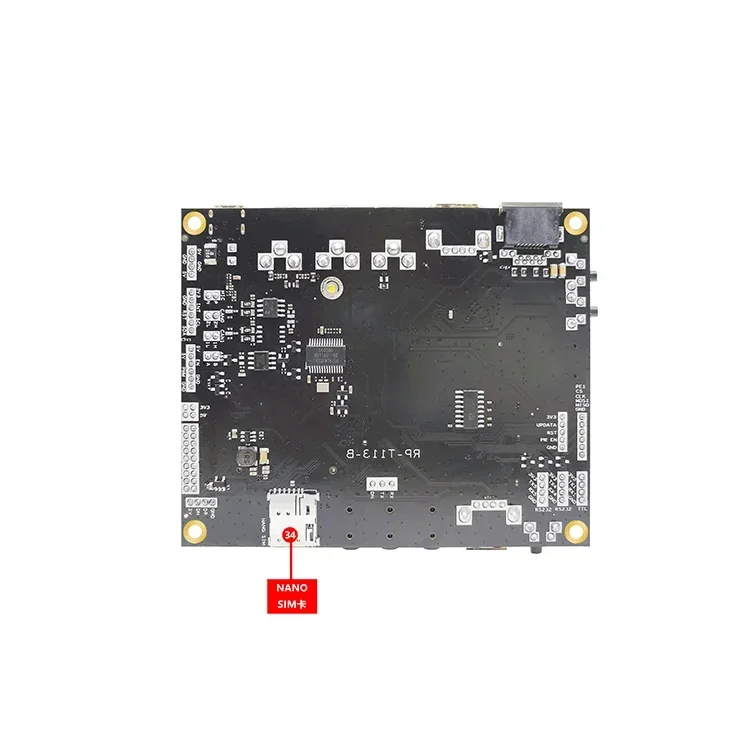

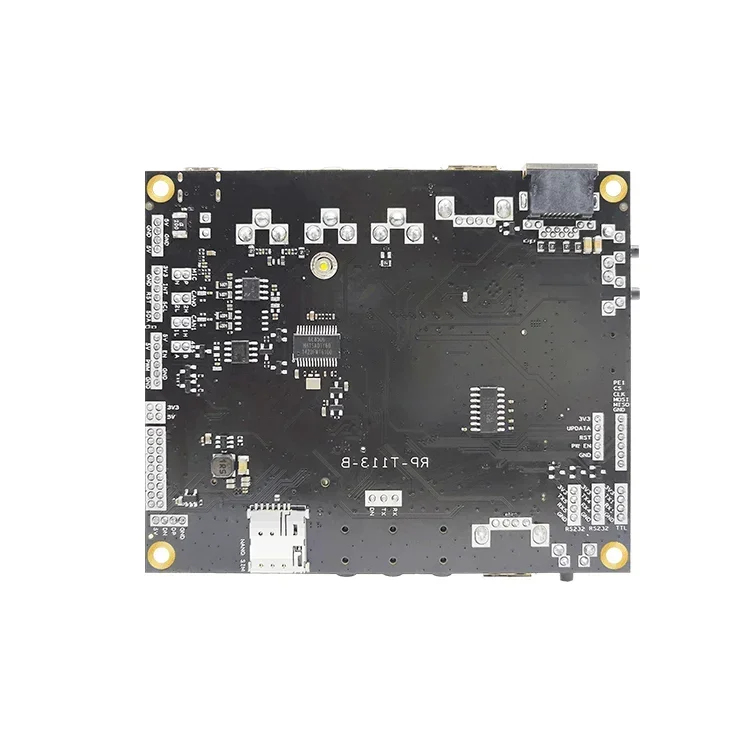

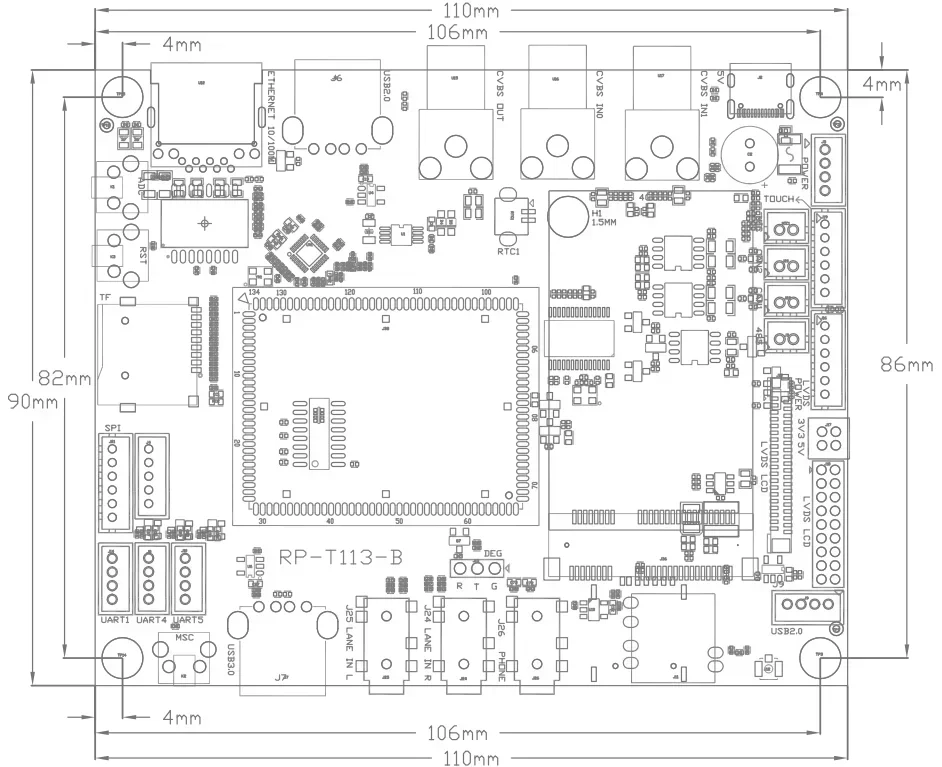

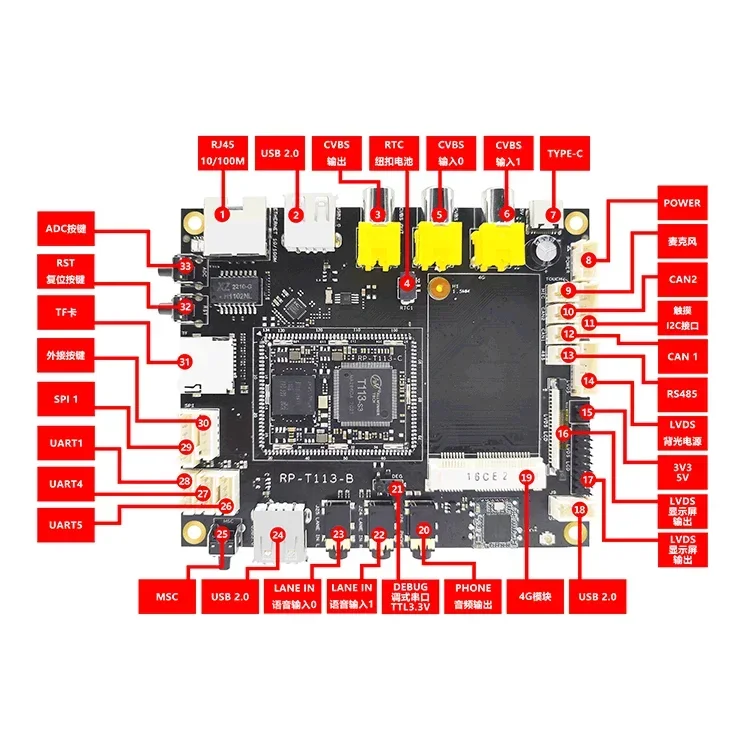

IO |
IO |
|
|
4 |
PIN 1 |
VDD |
|
3V |
RTC |
|
PIN 2 |
GND |
GND |
GND |
|
|
|
|
IO |
|
|
8 |
PIN1 |
5V |
|
5V |
|
|
PIN2 |
GND |
|
||||
PIN3 |
GND |
|
||||
PIN4 |
5V |
|
5V |
|
|
|
|
IO |
IO |
|
|
9 |
PIN 1 |
MICP |
|
|
||
PIN 2 |
MICN |
|
|
|
|
IO |
IO |
|
|
10 |
PIN 1 |
H |
|
CAN2 |
||
PIN 2 |
L |
|
|
|
|
IO |
IO |
|
|
11 |
PIN 1 |
3V3 |
|
3.3V |
I2C |
|
PIN 2 |
GND |
|||||
PIN 3 |
INT |
|
3.3V |
PD19 |
||
PIN 4 |
RST |
|
3.3V |
PD18 |
||
PIN 5 |
SCL |
|
3.3V |
SCL2 |
||
PIN 6 |
SDA |
|
3.3V |
SDA2 |
|
|
|
IO |
IO |
|
|
12 |
PIN 1 |
H |
|
CAN1 |
||
PIN 2 |
L |
|
|
|
|
IO |
IO |
|
|
13 |
PIN 1 |
B |
|
RS485 |
||
PIN 2 |
A |
|
|
|
|
IO |
IO |
|
|
14 |
PIN 1 |
12V |
|
12V |
LVDS |
|
PIN 2 |
12V |
|
12V |
|||
PIN 3 |
EN |
|
5V |
PE12 |
||
PIN 4 |
PWM |
|
5V |
PWM7 |
||
PIN 5 |
GND |
|
0V |
|||
PIN 6 |
GND |
|
0V |
|
|
|
IO |
IO |
|
|
15 |
PIN 1 |
3V3 |
|
3V3 |
LVDS3V3 |
|
PIN 2 |
LVDS VDD |
|
3V3 |
|||
PIN 3 |
5V |
|
5V |
LVDS5V |
||
PIN 4 |
LVDS VDD |
|
5V |
|
|
|
IO |
IO |
|
|
16 |
PIN 1 |
5V |
|
5V |
LVDS LCD TOUCH |
|
PIN 2 |
GND |
|
0V |
|||
PIN 3 |
GND |
|
0V |
|||
PIN 4 |
5V |
|
5V |
|||
PIN 5 |
5V |
|
5V |
|||
PIN 6 |
3V3 |
|
3V3 |
|||
PIN 7 |
||||||
PIN 8 |
LCD PWM |
|
3.3V |
PW7 |
||
PIN 9 |
LCD EN |
|
3.3V |
PE12 |
||
PIN 10 |
LCD RST |
|
3.3V |
PE13 |
||
PIN 11 |
GND |
|
0V |
|||
PIN 12 |
TP VDD |
|
3.3V |
|||
PIN 13 |
TP RST |
|
3.3V |
PD18 |
||
PIN 14 |
TP INT |
|
3.3V |
PD19 |
||
PIN 15 |
TP SCL |
|
3.3V |
SCL2 |
||
PIN 16 |
TP SDA |
|
3.3V |
SDA2 |
||
PIN 17 |
GND |
|
0V |
|||
PIN 18 |
LVDS CLKN |
|
||||
PIN 19 |
LVDS CLKP |
|
||||
PIN 20 |
GND |
|
0V |
|||
PIN 21 |
LVDS D0N |
|
||||
PIN 22 |
LVDS D0P |
|
||||
PIN 23 |
LVDS D1N |
|
||||
PIN 24 |
LVDS D1P |
|
||||
PIN 25 |
LVDS D2N |
|
||||
PIN 26 |
LVDS D2P |
|
||||
PIN 27 |
LVDS D3N |
|
||||
PIN 28 |
LVDS D3P |
|
||||
PIN 29 |
GND |
|
0V |
|||
PIN 30 |
||||||
PIN 31 |
||||||
PIN 32 |
GND |
|
0V |
|||
PIN 33 |
||||||
PIN 34 |
||||||
PIN 35 |
||||||
PIN 36 |
||||||
PIN 37 |
||||||
PIN 38 |
||||||
PIN 39 |
||||||
PIN 40 |
|
|
|
IO |
IO |
|
|
17 |
PIN 1 |
LVDS VDD |
Reviews
There are no reviews yet.
